基于μLED的1 Gbps自由空间深紫外光通信

波长小于300 nm的深紫外光由于能在材料中触发化学反应和激发荧光,已被广泛应用于不同的领域,包括标签追踪、光学传感器、物体表面及水的消毒与净化、固化材料以及法医和毒品检测等。这些应用促进了小型化高效率的基于氮化镓铝的深紫外发光二极管(LED)的发展。深紫外光的另一个有趣的应用是在深紫外自由空间光通信上。科学家们在很久以前就发现了深紫外在自由空间光通信中的潜能。由于波长很短,深紫外自由空间光通信具有一些独特的优势。比如,由于绝大多数太阳发出的深紫外光都被地球平流层中的臭氧层吸收,因此,深紫外光便为建立高层大气卫星间高保密自由空间光通信链接提供了机会和可能。此外,由于深紫外光在空气中的散射非常强烈,这使得在地面上建立低背景噪音、非视距的光通信链接成为可能。这种非视距深紫外光通信对于光束指向、获取和跟踪的要求都很低,因此也可利用深紫外光发射器搭建多路接入的通信系统。虽然已有对深紫外光通信链接的相关报道,但由于所用的深紫外光源(例如深紫外灯、闪光管或者传统的深紫外发光二极管)的调制带宽和效率都很低,极大限制了这些通信链接的性能。因此,研发具有高调制带宽的深紫外光源至关重要。

近年来,研究人员研制了作为新型发射光源的微米发光二极管(μLED),并把它应用于可见光自由空间光通信中。这些μLED的尺寸小于100 μm , 具有非常高的调制带宽(已有调制带宽超过800 MHz的报道),进而使得基于μLED的无线光通信系统具有非常高的数据传输速率。众所周知,LED的调制带宽取决于两个因素,即电阻-电容时间常数和微分载流子寿命。传统LED的尺寸较大,导致电阻-电容时间常数很大,LED 调制带宽主要取决于电阻-电容时间常数。因此传统LED的调制带宽相对较低,一般在10 MHz范围。相比之下,由于μLED尺寸很小,其调制带宽主要取决于微分载流子寿命。LED的载流子寿命是带电载流子在激活区域复合发光的平均时间。载流子寿命越短,LED的光输出对于高速电信号的响应就越快,即LED具有更高的调制带宽。μLED的尺寸非常小,这使其能够承载很高的电流密度。由于载流子寿命一般在高电流密度时减小,因此μLED的调制带宽要比传统LED高出一个数量级。这些新颖的特性使得μLED成为自由空间高速光通信的新光源。比如,近期的一项工作展示了一个基于串联μLED的自由空间可见光通信系统。在5 m的自由空间传输距离,这个可见光通信系统实现了超过10 Gbps的数据传输速率。预计在深紫外波段,采用μLED结构也将能获得高调制带宽。

来自英国斯特莱德大学光子研究所和爱丁堡大学Li-Fi研究中心的科研人员研究了发光波长位于UV-C 波段(200-280 nm)的μLED的调制特性和这些μLED在深紫外自由空间光通信中的应用。他们的研究结果发表在Photonics Research, 2019年第7卷第7期上(X. He, et al., 1 Gbps free-space deep-ultraviolet communications based on III-nitride micro-LEDs emitting at 262 nm)。

此项工作研发的深紫外μLED在调制带宽上有非常大的提升。相较于之前报道过的UV-C LED,深紫外μLED的调制带宽提高了3倍左右。并且在低电流密度的情况下,测得的深紫外μLED的调制带宽要比可见光μLED的调制带宽高很多。这显示了深紫外μLED在自由空间高速光通信应用中的巨大潜力。将此μLED应用于自由空间光通信链接,其通信速率有了显著的提升。相较于之前深紫外无线光通信的报道,通信速率提升超过15倍。此外,实验中测得的深紫外μLED的调制带宽和系统的通信速率受到所用的雪崩式光电二极管探测器带宽的限制,因此研究人员认为,如果使用具有更高带宽的雪崩式光电二极管探测器,测得的深紫外μLED的调制带宽和系统通信速率将会明显提高。

此项工作展示了深紫外μLED卓越的调制特性及其在自由空间高速光通信中的应用。为探索和发挥其全部潜力,未来的工作将专注于进一步优化深紫外μLED光发射器和系统光路。近期通过调整系统光路和使用高带宽雪崩光电二极管探测器,研究人员在1 m自由空间传输距离上实现了超过3 Gbps的深紫外光通信速率。此外,基于深紫外μLED的非视距光通信系统也在构建之中。

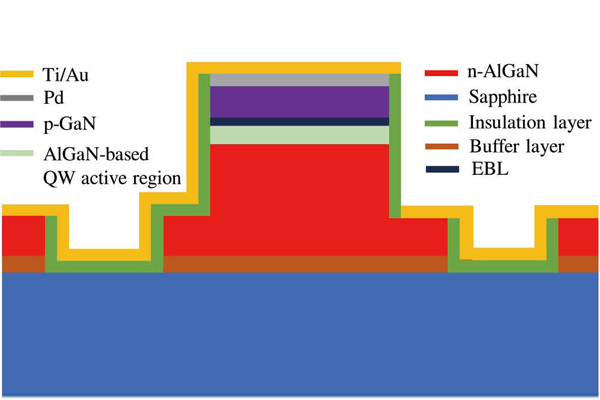

单一深紫外μLED截面示意图

1 Gbps free-space deep ultraviolet communications based on micro-LEDs

Deep Ultraviolet (UV) light with wavelengths below 300 nm is widely used for many different kinds of applications as these short wavelengths can trigger chemical reactions and excite fluorescence in materials. This makes deep UV extremely useful for label tracking, optical sensors, disinfection and decontamination of surfaces and water, curing materials and forensic or drug detection. These applications have driven the development of compact and efficient AlGaN-based deep UV light emitting diodes (LEDs). Another intriguing application is deep UV free-space optical communications, the potential of which has been known for some time, as the properties of light at these short wavelengths can enable unique embodiments of this technology. For example, as most of solar deep UV radiation is absorbed by the ozone layer in Earth's stratosphere, deep UV provides the opportunity to establish high-security free-space optical communication links between satellites in the upper atmosphere where the atmosphere "shields" the communication links from attempts at eavesdropping. Furthermore, since deep UV is strongly scattered in air, a low background noise non-line-of-sight (NLOS) optical communication link with low pointing, acquisition and tracking requirements can be constructed using deep UV light sources on the ground. As a result, it is possible to build a multi-access NLOS optical communication link by using deep UV transmitters. While deep UV communication links have been reported, their performance has been severely limited by the low efficiency and/or modulation bandwidth of the light sources, being either flash tubes, lamps or conventional deep UV LEDs. Therefore, developing deep UV light sources with high modulation bandwidth is of paramount importance.

In recent years, micro-LEDs (μLEDs) have been developed as novel transmitters for visible light based free-space optical communications. These μLEDs, which have lateral dimensions of less than 100 μm, have extremely high modulation bandwidths (in excess of 800 MHz has been reported) which is enabled by their small feature size, which in turn supports very high wireless data transmission rates. It is well known that the modulation bandwidth of LEDs is determined by two factors, namely the resistance-capacitance (RC) time constant and the differential carrier lifetime. For conventional LEDs, the modulation bandwidth is mainly dominated by a large RC time constant due to the large area of the LEDs. As a result, the modulation bandwidth of conventional LEDs is relatively low, typically on the order of 10 MHz. However, in contrast, the modulation bandwidth of μLEDs is mainly dominated by their differential carrier lifetime, thanks to their small area. This carrier lifetime is the average time for electrical charge carriers take to recombine inside the µLED's active region and emit light. The shorter the lifetime, the more rapidly the µLED's optical output can respond to a fast electrical signal and therefore the higher the device's modulation bandwidth. The small feature size of μLEDs allows them to be driven at very high current densities which, since the carrier lifetime generally decreases at higher current densities, means that the modulation bandwidth of μLEDs can be an order of magnitude higher than that of conventional LEDs. These novel characteristics make μLEDs strong transmitter candidates for high-speed free-space optical communications. For example, a data transmission rate over 10 Gbps at a free-space transmission distance of 5 m was recently demonstrated using a series-biased μLED as a transmitter in a visible light free-space optical communication system. It is expected that the µLED device format can also be used to achieve high modulation bandwidths at deep UV wavelengths.

The researchers from the Institute of Photonics, University of Strathclyde and Li-Fi R&D Centre, University of Edinburgh have investigated the modulation characteristics of μLEDs emitting in the UV-C region (200-280 nm) and their applications as light sources in deep UV free-space optical communications. The research results are published in Photonics Research, Volume 7, No. 7, 2019 (X. He, et al., 1 Gbps free-space deep-ultraviolet communications based on III-nitride micro-LEDs emitting at 262 nm).

The deep UV μLEDs fabricated in this work present a great improvement in the modulation bandwidth, which is around 3 times higher than the previously reported modulation bandwidths of other UV-C LEDs. Moreover, at low current densities, the measured modulation bandwidth of the deep UV μLEDs is much higher than that of visible μLEDs, which illustrates the huge potential of the deep UV μLEDs for high-speed free-space optical communications. By applying these deep UV μLEDs into a free-space optical communication link, the data transmission rate is significantly increased, which is more than 15 times higher than the previously reported deep UV optical wireless links. Moreover, the measured modulation bandwidths of the deep UV μLEDs and system data transmission rates are limited by the cut-off frequency of the avalanche photodiode (APD) detector used for the measurement. The researchers consider that an even higher modulation bandwidth of the deep UV μLEDs and, in turn, an even higher deep UV data transmission rate will be achieved if a higher modulation bandwidth APD detector can be applied.

This work presented the excellent modulation performance of the deep UV μLEDs. Moreover, the application of these μLEDs in deep UV high-speed free-space optical communications has also been demonstrated. Future work will focus on the further optimizations of the deep UV μLEDs and optical set up in order to fully explore and realize the potential of these deep UV μLED transmitters. Recently, by adjusting the optical set up and using a high modulation bandwidth APD detector, a deep UV data transmission rate over 3 Gbps is achieved at a free-space transmission distance of 1 m. Furthermore, a NLOS communication link based on the deep UV μLEDs will be constructed in the future.

Cross-sectional schematic diagram of a single deep-ultraviolet μLED
